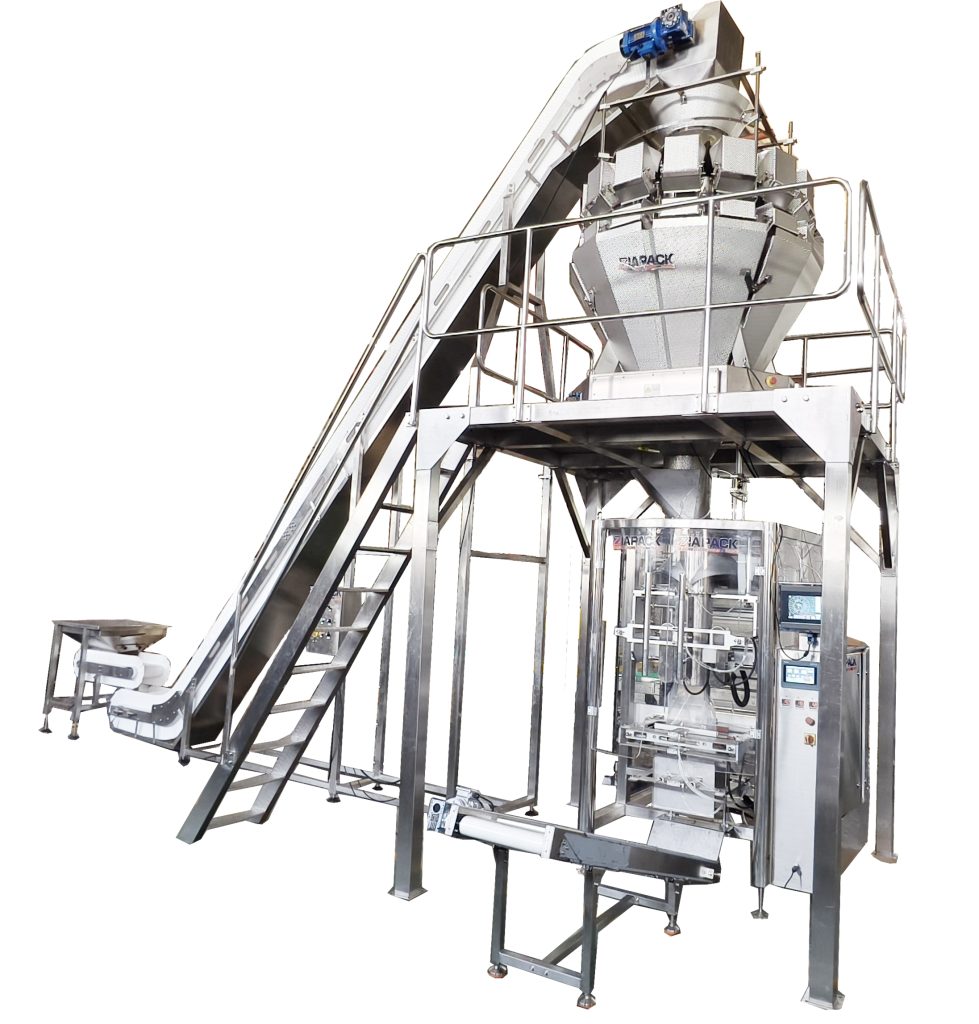

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Апликација:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Карактеристики:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Вовед:
Оваа машина може автоматски да ги реализира функциите на правење вреќи, полнење, запечатување, печатење, сечење итн.
Оваа машина за пакување прифаќа увозен серво мотор за довод на филмови и интерфејсот човек-машина користи напреден екран на допир. Работата е поедноставна и поудобна. Сите компоненти имаат меѓународен познат бренд, PLC е SIEMENS, серво моторот е PANASONIC, екранот на допир е SIEMENS, цилиндарот и вентилот за воздух е SMC. деловите што допираат со материјалот, контролниот кабинет, главната рамка се направени од нерѓосувачки челик304
Технички параметри:
| Модел | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Должина на торбата | 150-480mm by secondary film pulling the bag length can be longer |
| Ширина на вреќата | 120-375mm(Side width +front width ) |
| Ширина на филмот | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Моќ | 6KW 380V±10% 50Hz |
| Големина на машината | 1650*1500*1750mm |
| Машина тежина | 650кг |
